Description

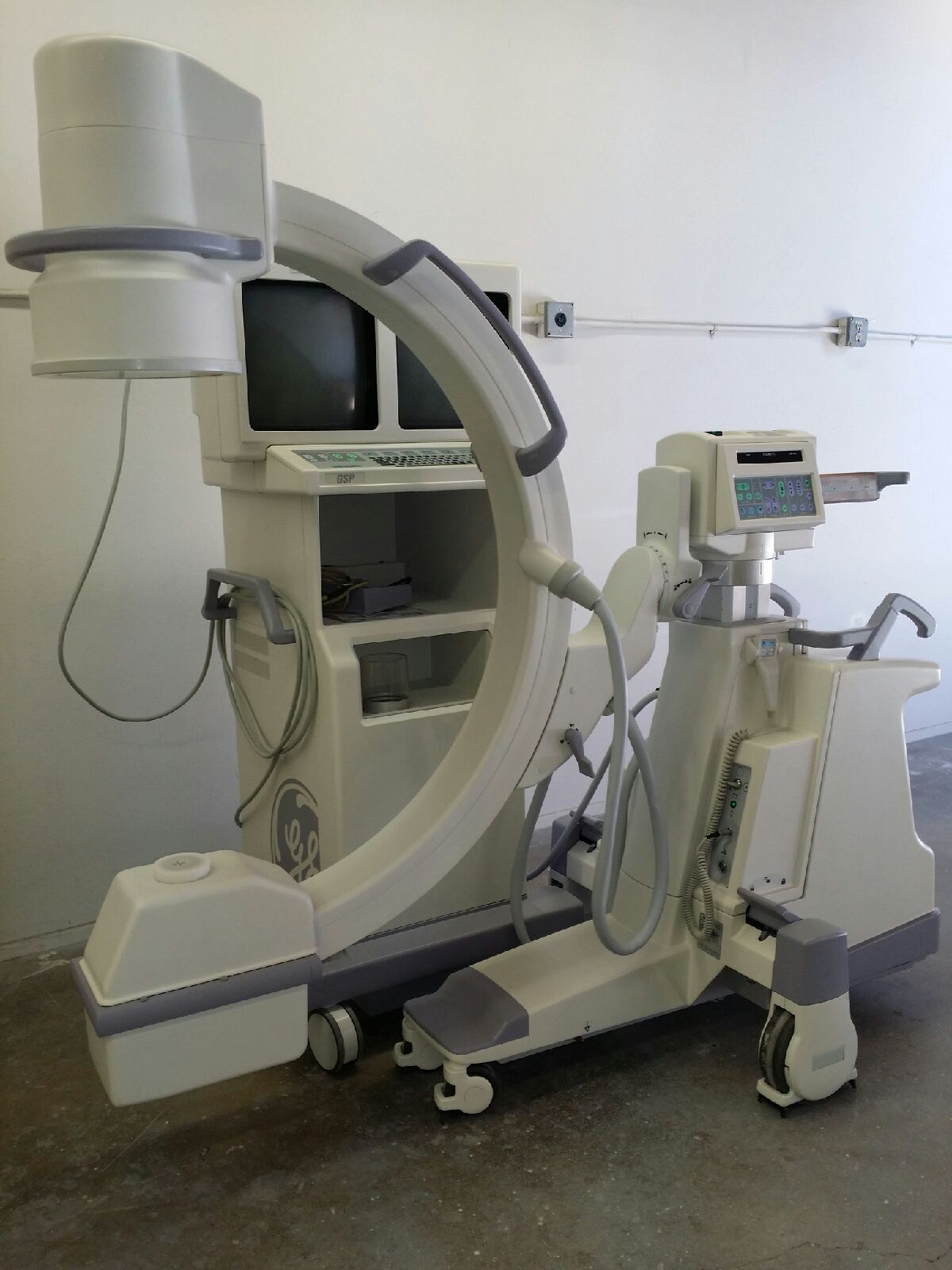

2007 OEC 8800 C-Arm for sale

OEC 8800 Specifications:

Design
• Mobile C-arm
• Separate dual monitor cart
Generator
• 20 kHz high frequency
• 2.2 kW power
• Up to 110 kVp
X-Ray Tube
• Stationary Anode
• 0.5 mm and 1.5 mm focal spot
• Anode heat capacity: 74,200 HU
• Anode cooling rate: 39,960 HU/min

Video Imaging System & Processing
• Tri-mode 9”/6”/4.5” II
• 1k x 1k x 16 bit image processing
• 370O motorized camera rotation
• Touch screen system control
• Noise filter with on-screen indicator
• Optional DICOM 3.0 interface

Electrical
• Input power (60Hz or 50Hz)
• 100V @ 20A
• 120V @ 15A
• 200V, 220V, 230V, 240V @ 10A

Dimensions

Mainframe
System length – 69.8” (177cm)
System height – 69.5” (176.5 cm)
System width – 33 (84cm)
C-arm
SID 39 (99cm)
Free space in arc 31 (79cm)
Depth in arc 26 (66cm)
Orbital rotation 135° (90°/45°)
Manual rotation 360° (180°/180°)
Wig/wag 20°
Horizontal travel 8 (20cm) 8 (20cm) 8 (20cm)
Vertical travel 18 (46cm)
Workstation
Height – 64 (163cm)
Width – 27 (69cm)
Depth – 27 (69cm)
