Description

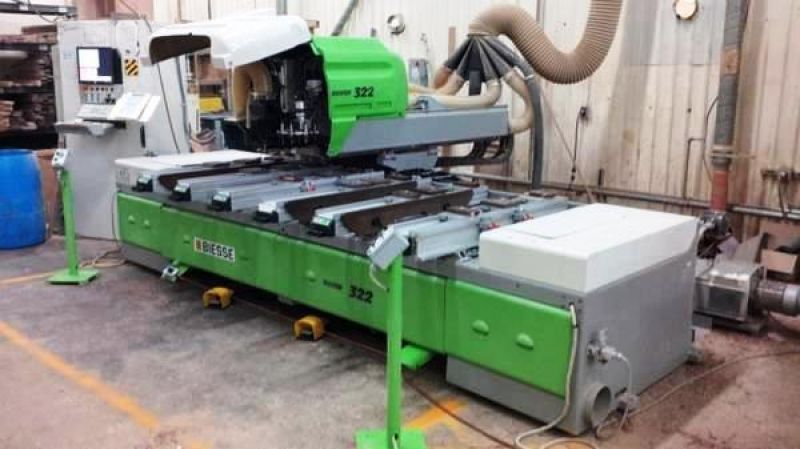

Biesse Rover 322 CNC Machining Center for sale

Working capacity:

X-Axis is 106.2 (2,700 mm), Y-axis is 45 (1,144 mm) for routing;
X-axis is 106.2 (2,700 mm), Y-axis is 47 (1,204 mm) for boring;
travel speed on X- & Y-axis is 246 FPM and 49 FPM on Z-axis.

Equipped with:

(26) Independent vertical boring spindles forming a T-configuration
with (14) spindles on the X-axis and (12) spindles on the Y-axis.

A total of (8) opposed horizontal spindles for edge boring on all sides,
(6) on the X-axis (3 each opposed to each other)

and (2) opposed on the Y-axis.

Work area with (4) Independent work zones,

(6) adjustable panel supports,

each with (3) vacuum cups and material lifting bars,

(4) pneumatic side stops, (4) pneumatic center stops, (6) backstops (computer controlled).
9HP motor

Year: 1998

Removed from service on 8/16/13.
