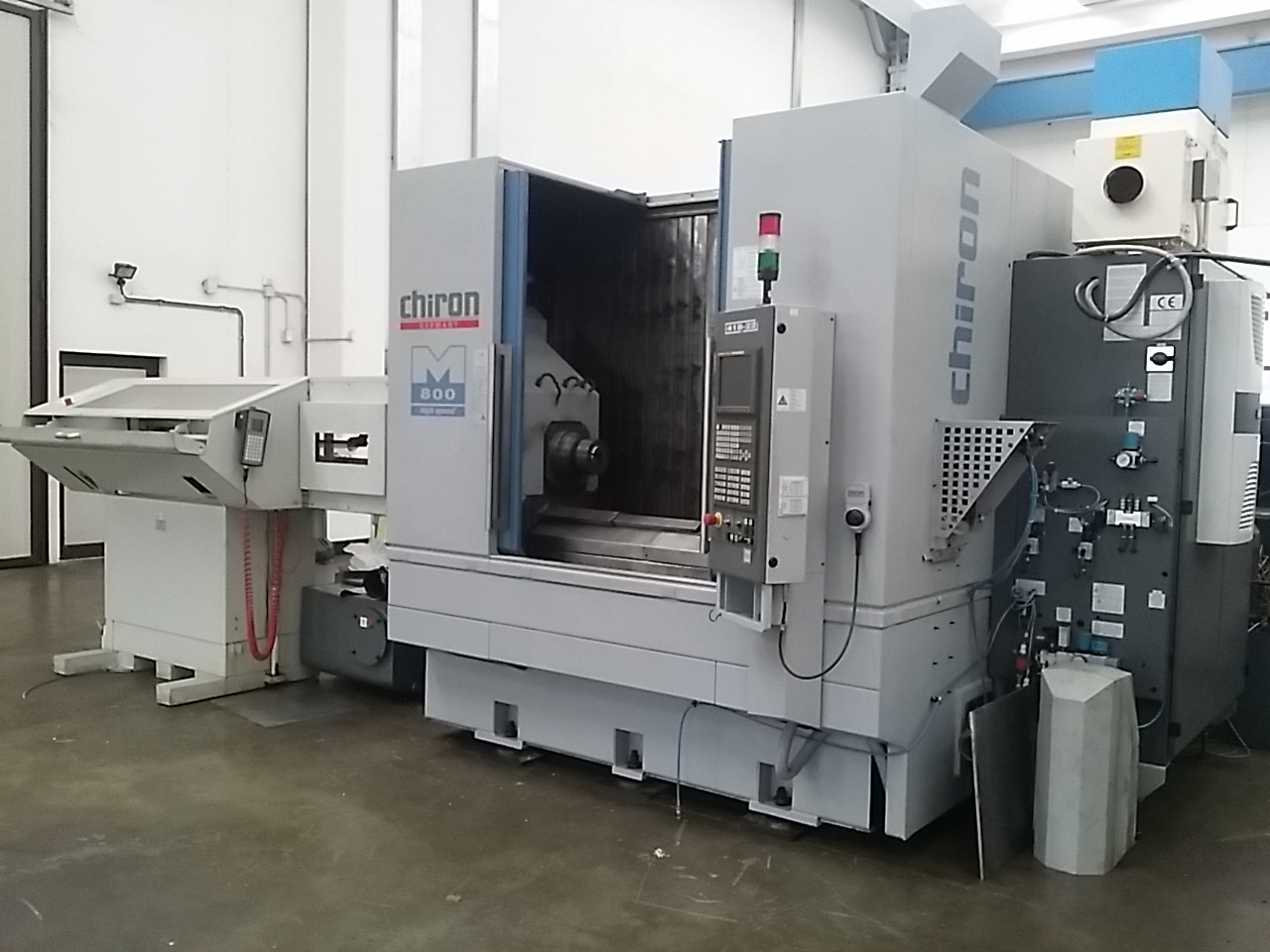

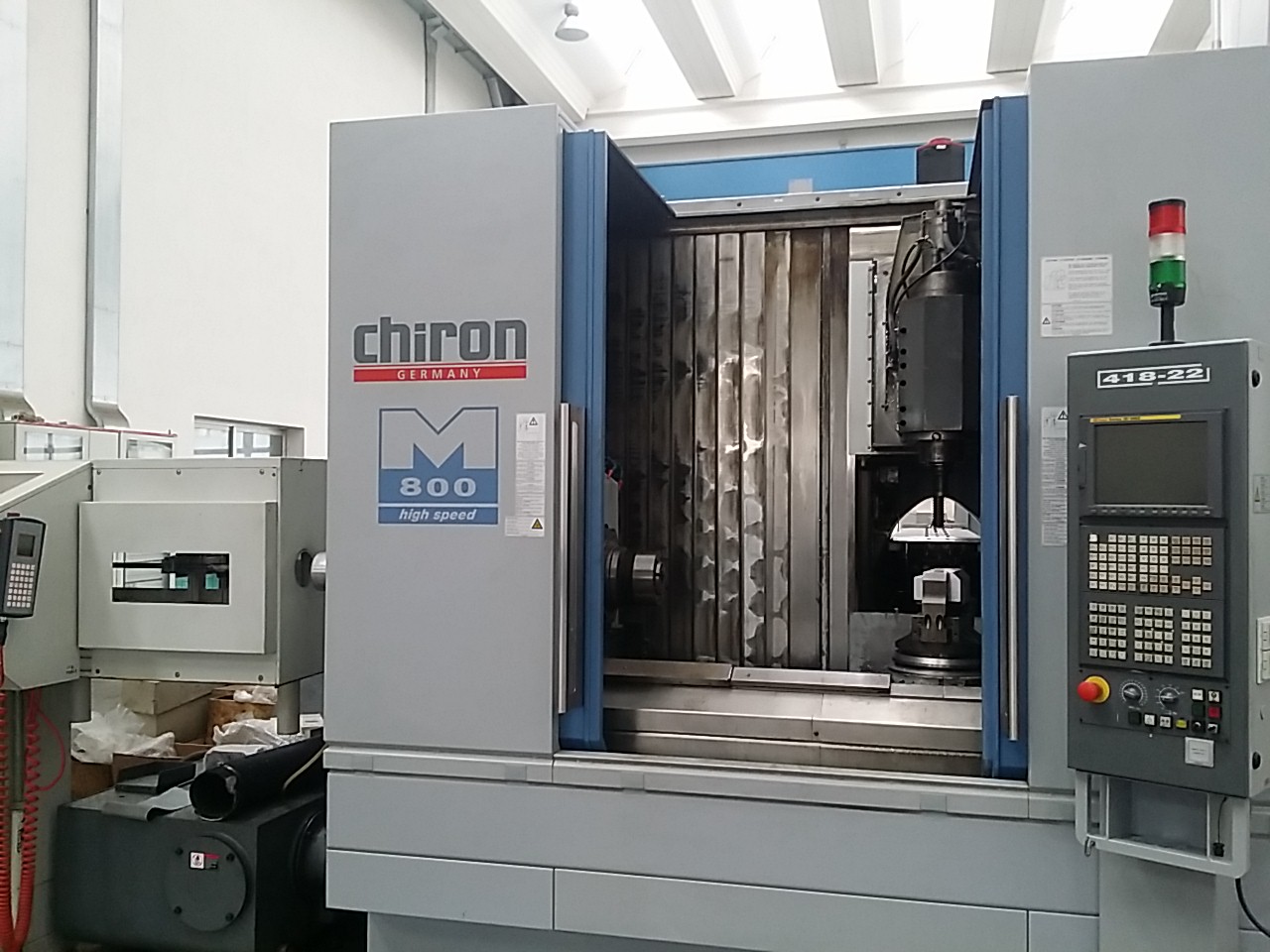

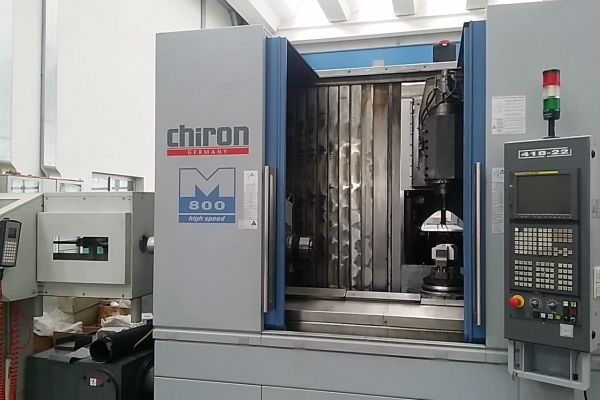

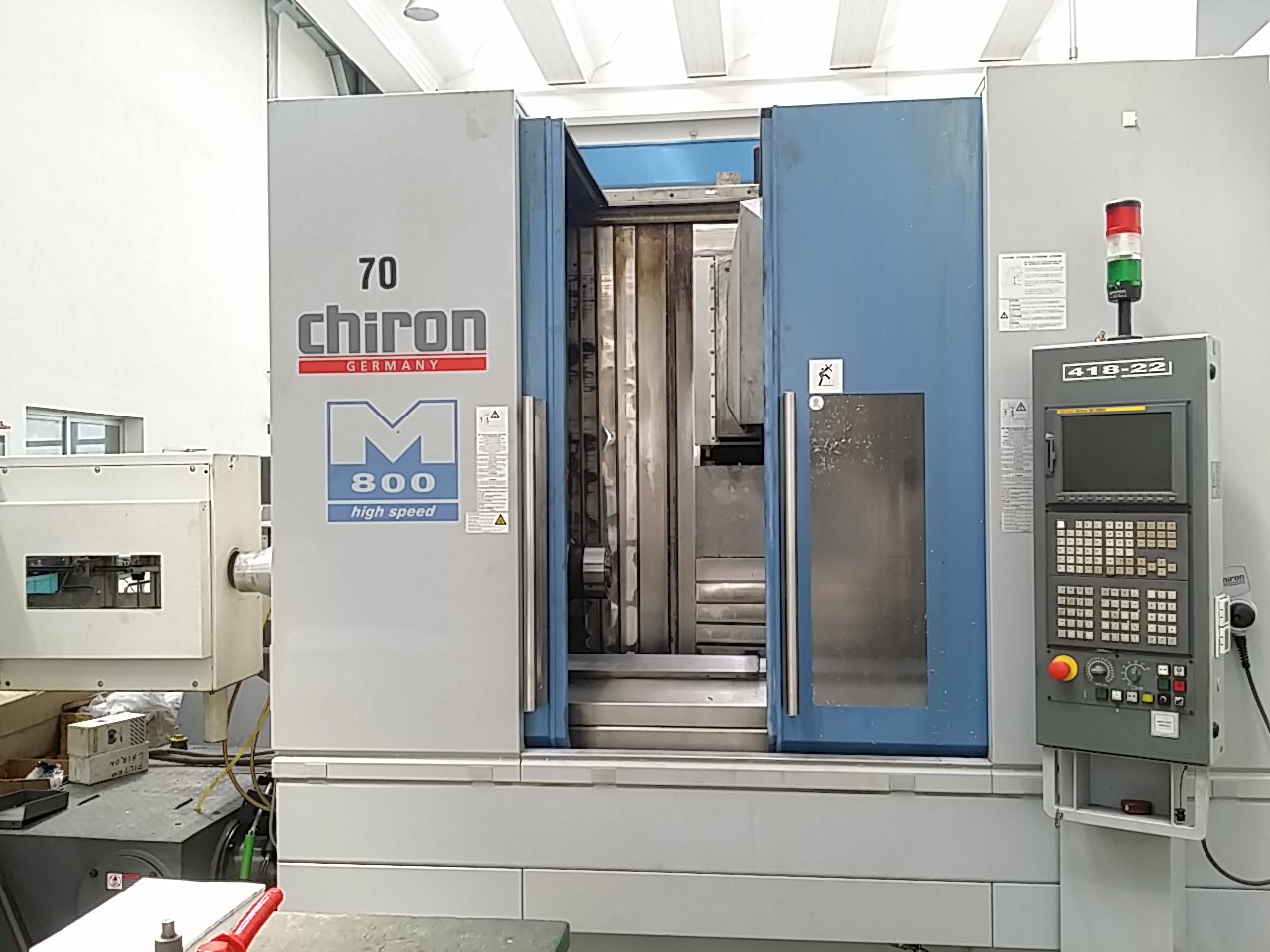

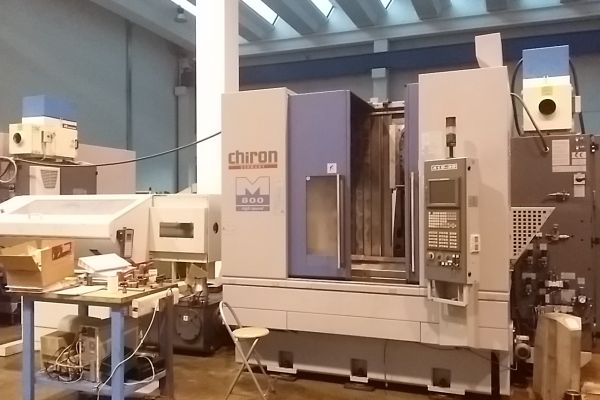

Chiron MILL 800 5-axis MILL + TURN (low hours)
Listed 1 week ago
Machining center 5-axis interpolated – milling+turning capabilities – 2 extra axis for workpiece handling
Description
CHIRON
MODEL MILL 800 5 axis
5 axis machininng center (milling/turning from bar)

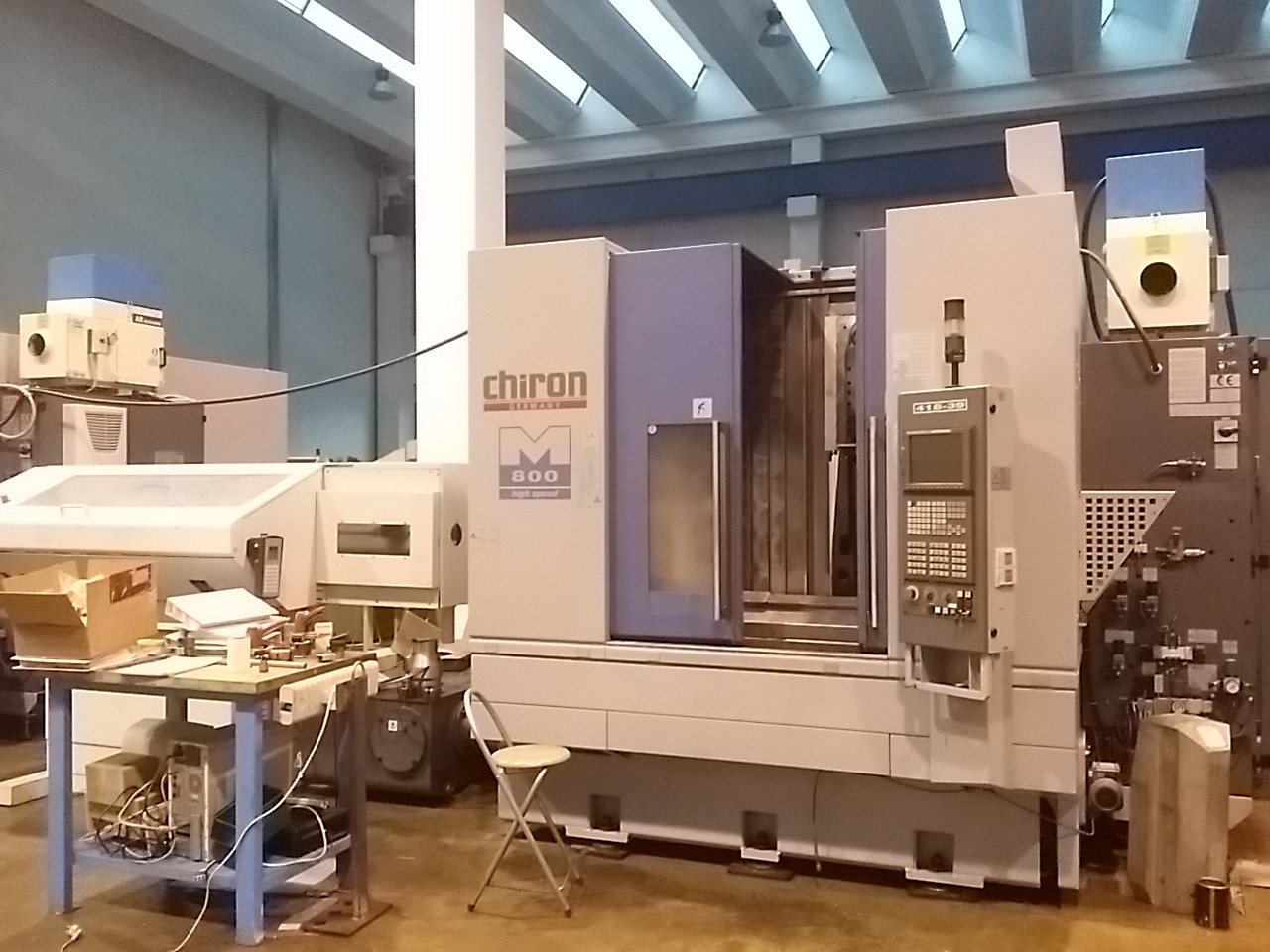

Under power in our warehouse

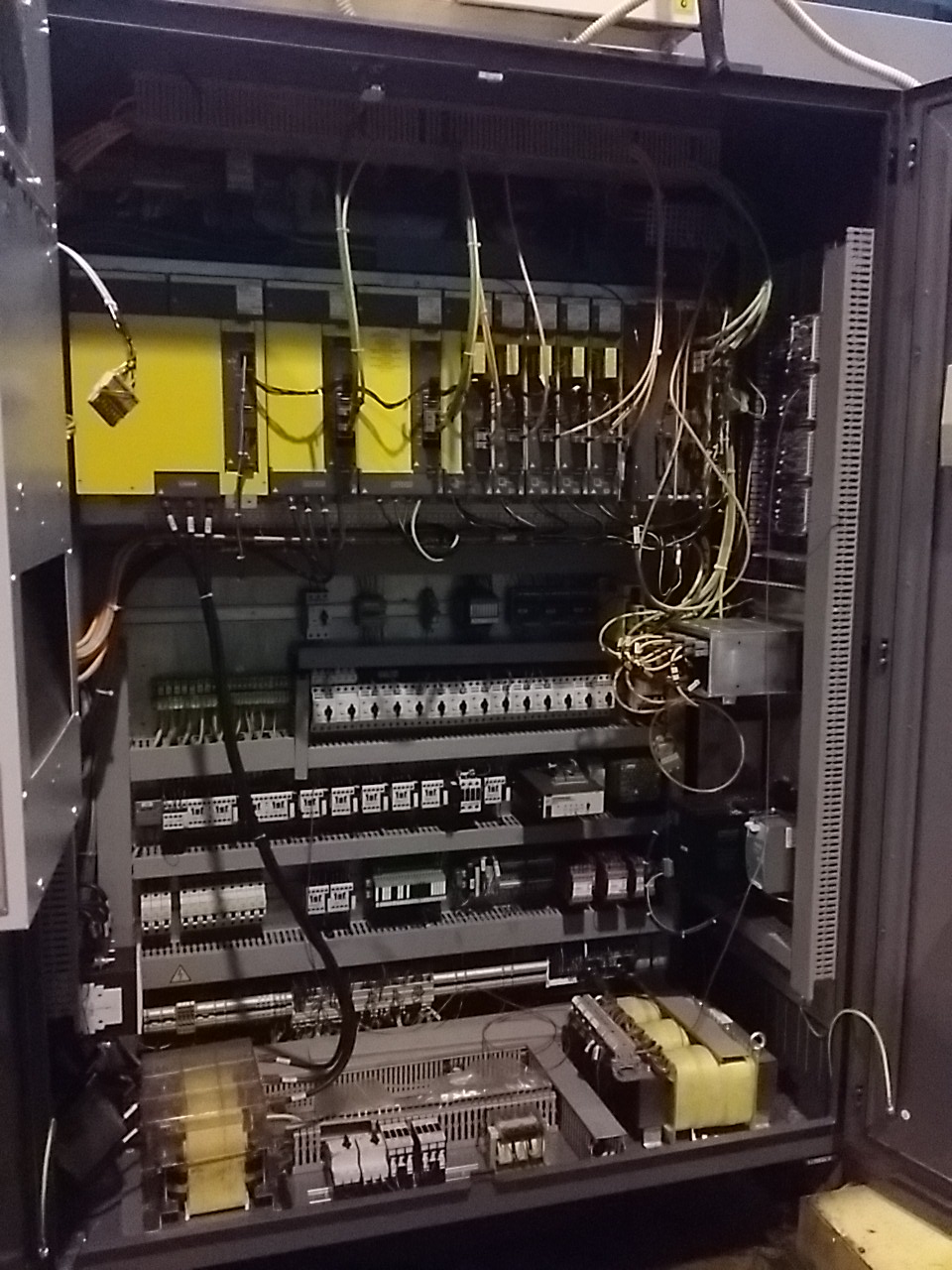

CNC Fanuc 18iMBS (5 simoultaneous axis 1*)
X, Y, Z (mm) 800 – 500 – 550
Rapids (Highspeed) 60 m/min

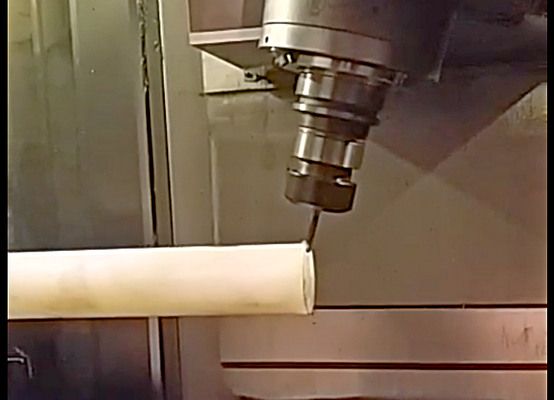

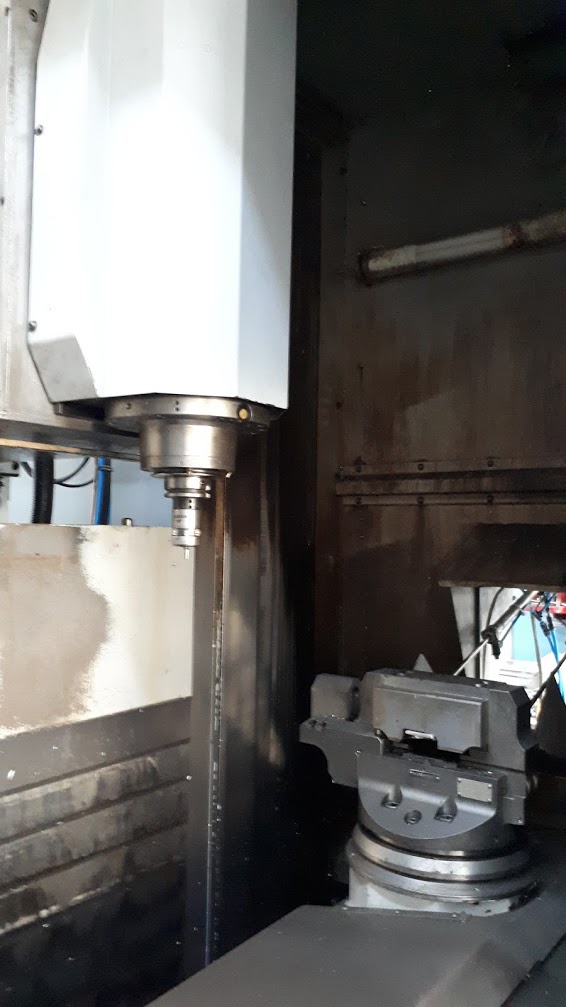

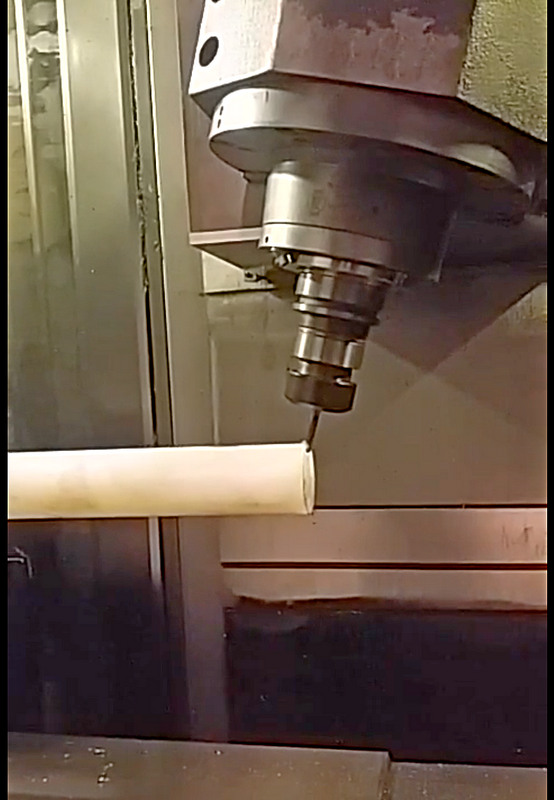

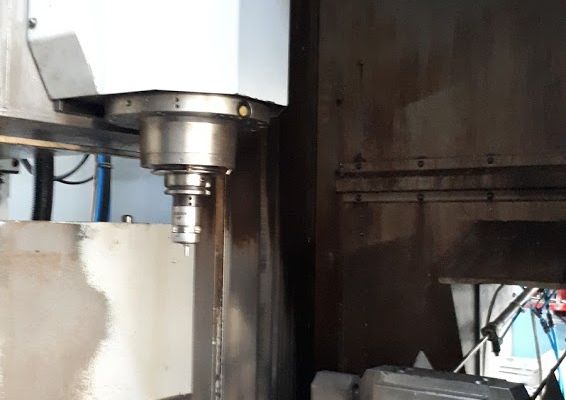

Swivelling head CNC controlled (B axis) +/- 100°

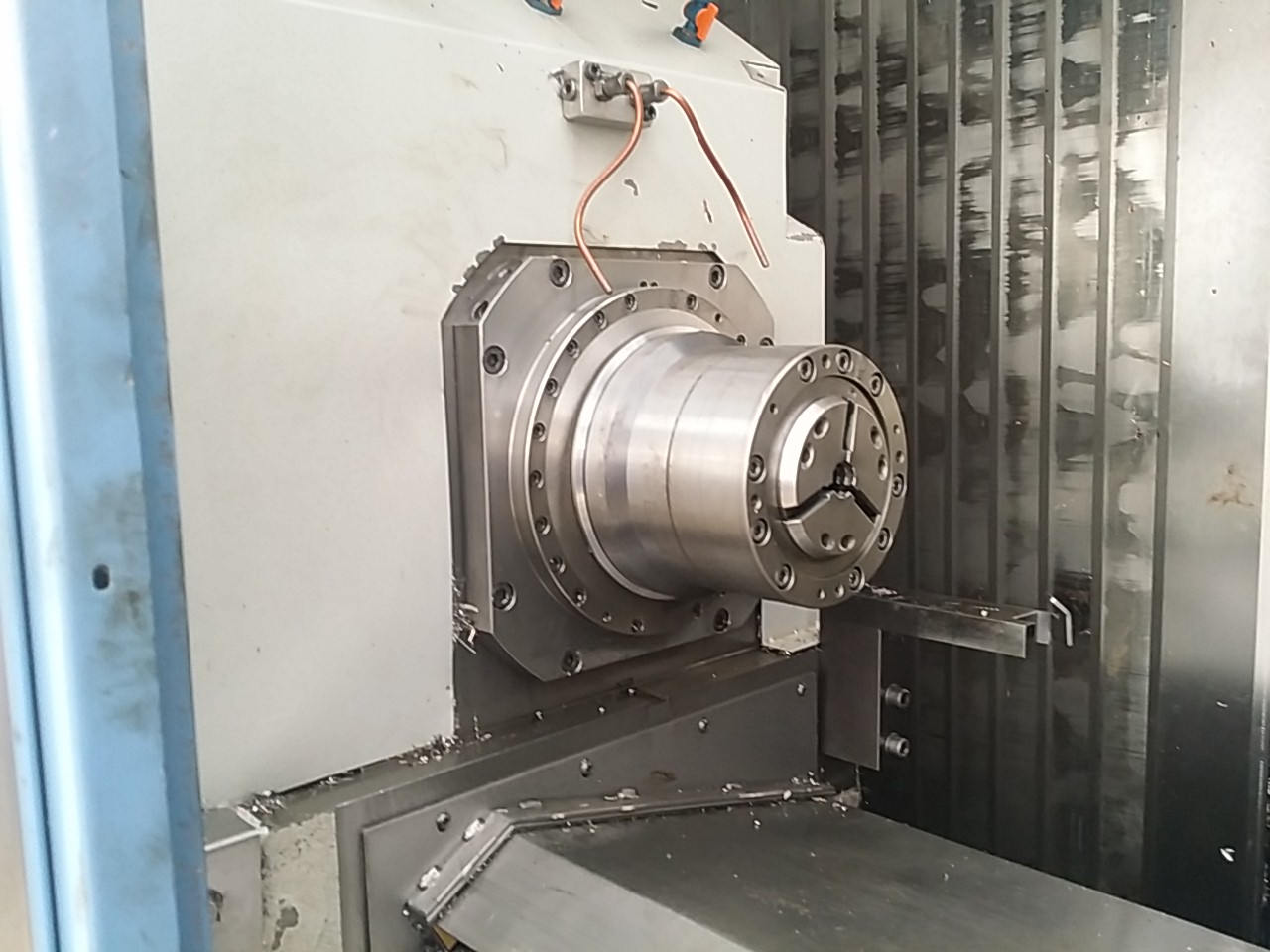

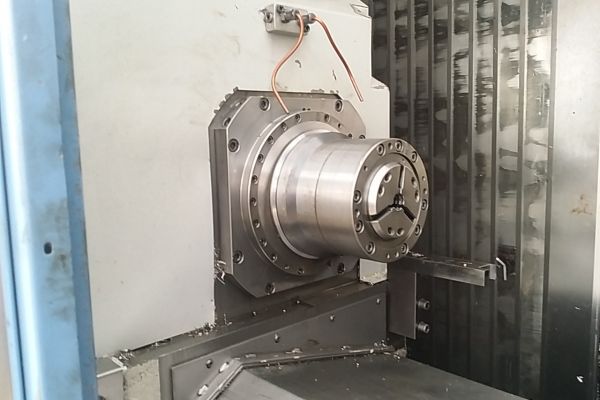

Turning spindle Peiseler
Milling spindle 12.000 giri / 140 Nm (v nota 2**)
Tools 65
Tool type HSK-A 63 DIN 69893
Tool-change time 1,5 sec (v nota 3***)
Table 1400×500
Max table load 1200 kg
Coolant through spindle 70 bar

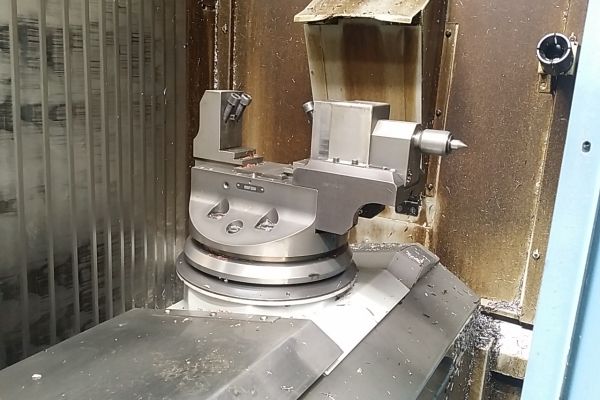

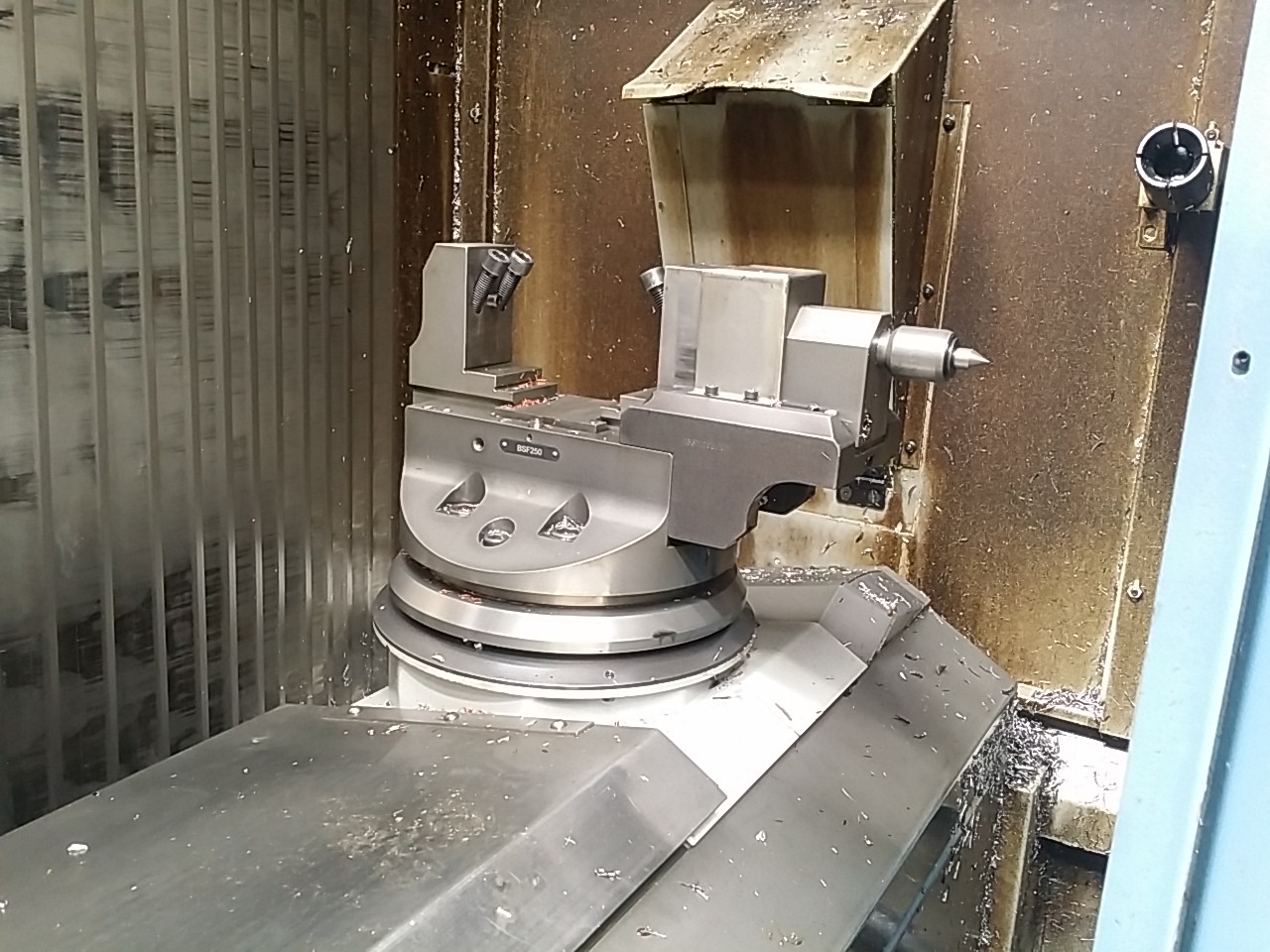

CNC controlled clamping/rotating unit for 6th face machining
Pressurised linear encoders
Swarf conveyor
Renishaw-ready
Y.O.M. 2006
Weight 7500 kgs
Turning package
Max dia 65mm
RPM: 15 / 4500
Max 42,5 KW / 90 Nm.
Hydraulic clamping 800 Nm.

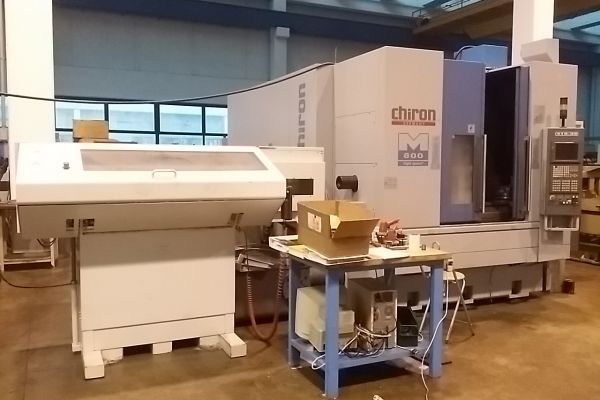

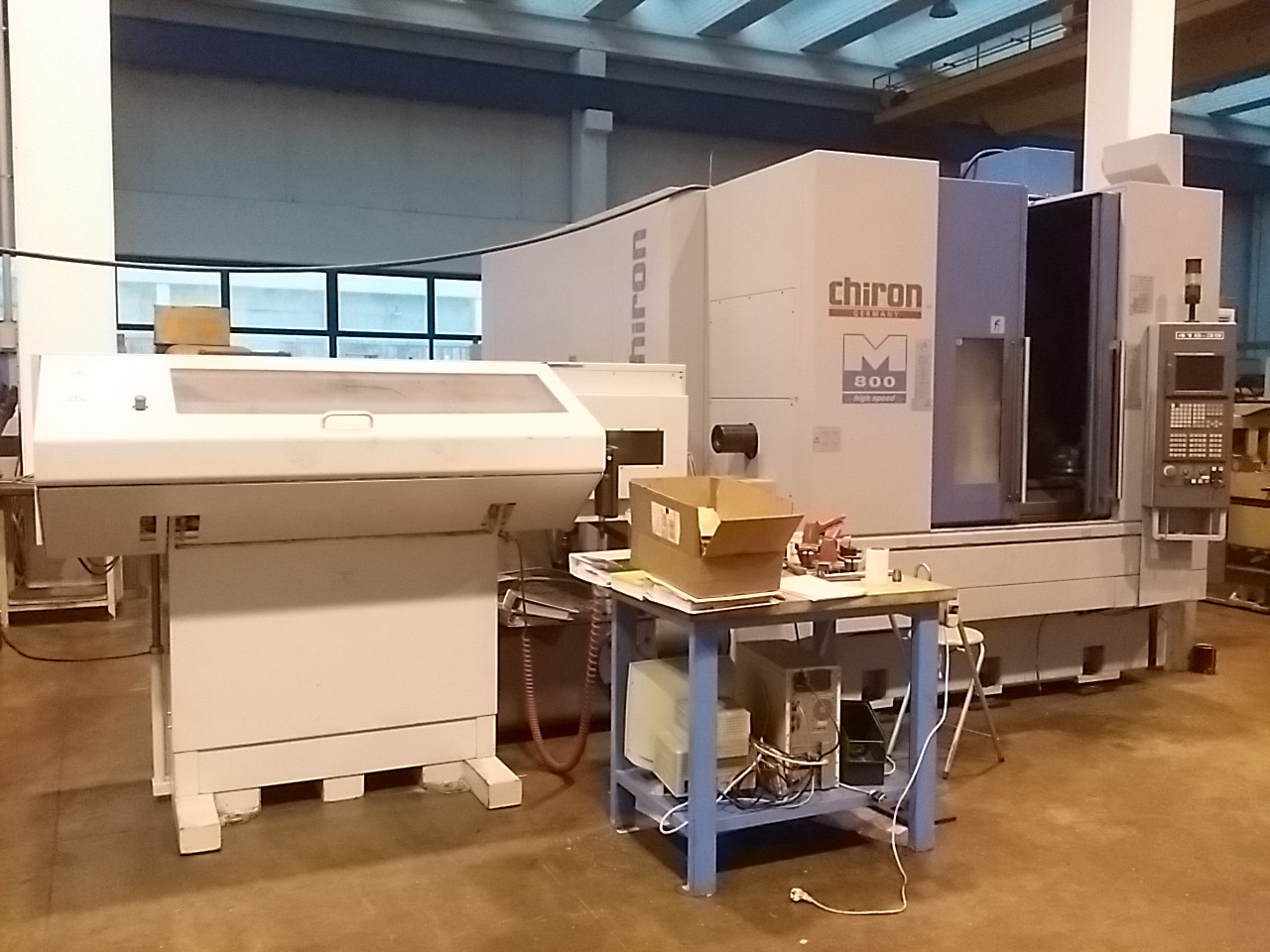

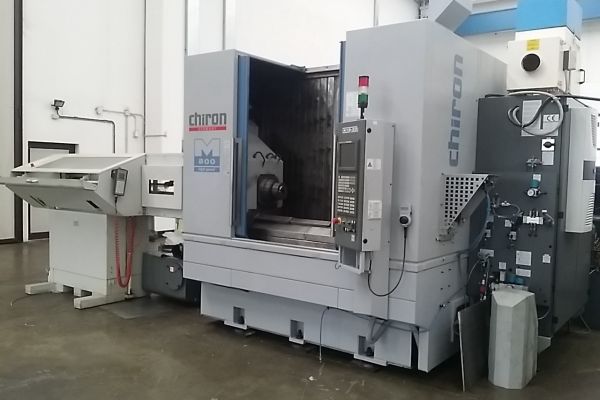

Bar loader ILS-RBK- 10012 65
Diameters min/max 5/65 mm L= 600-1200 mm
