*REBUILT in 1995 has not been used since.

Description/Function of unit

Service require

Electrical – 440 Volt, 3 phase, 60 cycle, 75 KVA (approx) full load operation
Water – 15 GPM, 90ºF
Air – Shop air, 30 SCFM required, 90 PSI

Service Connections Description, Size, Location

Reservoir drain, ¾”, Left side of stand
Waste water outlet, 1¼”, Left rear of stand
Cooling water inlet, 1¼”, Left rear of stand
Air supply, 3/8”, Left rear of stand
Electrical power inlet, 1¼”, Right rear of stand

Capacities and Ranges

Reservoir– 50 gallons
Flowmeter bank– 3 stage 0.05-34.5 GPM calibrated at 125ºF, plus or minus 1% full scale
Main pump– hydraulic variable volume, hand wheel control pressure compensated; 30 GPM, 3000 PSI @ 1800 RPM, 27 GPM, 3700 PSI @ 1800 RPM, 20 GPM, 5000 PSI @ 1800 RPM
Boost pump– 30 GPM, 60 PSI @ 1800 RPM
Auxiliary pump– 5 GPM, 100 PSIG @ 1800 RPM

Air operated hydraulic pimp up to 10,000 PSIG @ 100 PSIG air pressure, discharge volume 65 cu. In per minute at 10,000 PSIG
Motor– main pump 440 volt, 3 phase, 60 cycle, 1800 RPM, 75 HP
Motor– boost pump 440 volt, 3 phase, 60 cycle, 18000 RPM, 5 HP
Motor– Auxiliary pump 440 volt, 3 phase, 60 cycle, 1800 RPM, ½ HP

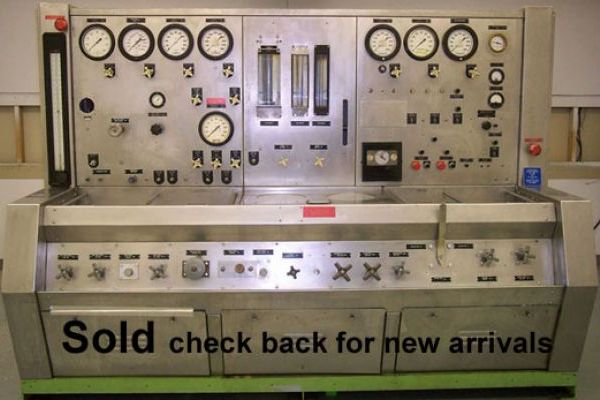

All stainless steel cabinet stand can be used to test: Actuators, valves, controls, pumps, hoses, fuses, and related hydraulic components

You will need to add or purchase a vari-drive to act as the test pump prime mover.
