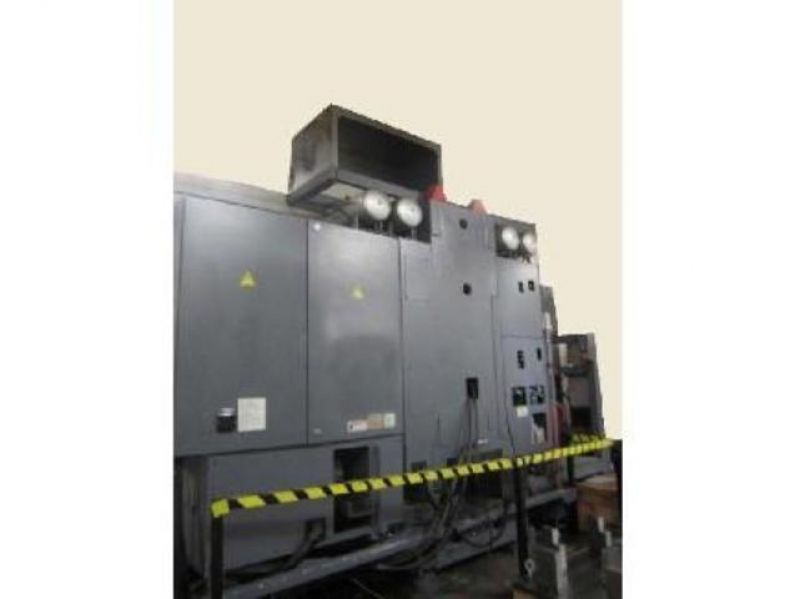

Okuma Millac 853pf 5-AXIS 2004 120″ Vertical Machining Center for sale

TABLE DIMENSIONS: 126 X 33.5
MAX. LOAD ON TABLE: 6,600 LBS.
X-AXIS TRAVEL: 120.08
Y-AXIS TRAVEL: 33.46
Z-AXIS TRAVEL: 27.56
A-AXIS TRAVEL: ±35°
B-AXIS TRAVEL: ±35°
SPINDLE NOSE TO TABLE: 5.91 – 33.46
SPINDLE CENTER TO COLUMN SLIDEWAY: 36.61
TABLE TOP FROM FLOOR: 42.52
X-AXIS BALLSCREW DIA./PITCH: 2.48 / 0.42
Y-AXIS BALLSCREW DIA./PITCH: 1.97 / 0.63
Z-AXIS BALLSCREW DIA./PITCH: 1.97 / 0.47
X, Y, Z AXIS THRUSTS: 3,527 LBS.
RAPID TRAVERSE (X/Y AXIS): 1,181 IPM
RAPID TRAVERSE (Z AXIS): 945 IPM
RAPID TRAVERSE (A/B AXIS): 3600 DEG./MIN.
CUTTING FEEDRATE X/Y/Z AXIS: 0.039 – 945 IPM
CUTTING FEEDREATE A/B AXIS: 1 – 2,400 DEG./MIN.
SPINDLE BORE TAPER: CAT 50
SPINDLE SPEED RANGE: 60 – 12,000 RPM
SPINDLE DRIVE MOTOR: 75 HP
SPINDLE BEARING I.D.: 3.54
TOOL CHANGER: 30 ATC
MAX. TOOL LENGTH: 13.78
MAX. TOOL WEIGHT: 44 LBS.
TOOL CHANGE TIME (T-T/C-C): 9 / 16
HYDRAULIC UNIT MOTOR: 3.7 HP
COOLANT PUMP MOTOR: 2.9 HP
HYDRAULIC TANK: 2.64 GAL.
COOLANT TANK: 396 GAL.
APPROX. DIMENSIONS: 29′ X 15′ X 11′
APPROX. WEIGHT: 44,000 LBS.
