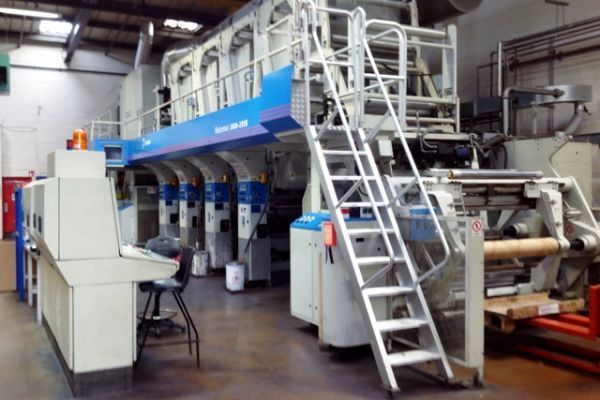

ROTOMEC 3000-3RES | Used Rotogravure press for sale

Materials: . MOPP min 20 µm max 100 µm: . PET min 20 µm max 100 µm
and similar flexible films and laminates
In addition to rotogravure printing each unit can coat or lacquer.
The machine comprises 4 printing stations
Max web width        1100 mm
Max. printing width 1050 mm
Min web width           550 mm
Max mech speed      250 m/min [with cylinder circumference 500 mm]
Operating speed,      220 m/min
Circumference range 370 to 920 mm
Unwinder & rewinder – full automatic reel changeover with splice and cut off
Max reel diameter     1000 mm
Core diam                     154 mm
Heating                     –  Indirect by gas with air/air heat exchanger
Web direction left to right from the operator’s position
– 4 Printing units rotogravure series 3000-3R: cartridge type (not reversible) Nos.1, 2, 3 and 4
.          – possibility to use integral or sleeve type printing cylinders
. each unit is driven by independent AC Vector motor synchronized by load cell
.- Electronic line shaft machine: an AC Vector motor drive
– Web Guide system FIFE Symat 300
– Detecting/control of solvent concentration level – LEL
– Electro Assist – SPENGLER for units 2, 3, 4
– Automatic Colour Register – ELTROMAT, mod. DGC 650
– COSMOLINE-X automation system allows the operator to control the machine operation, by following in real time the status of all significant parameters,
– Cooling And Air Purging System For Electric Panels And Motors
– Carbon Dioxide Fire Suppression System (CO2)
