Description

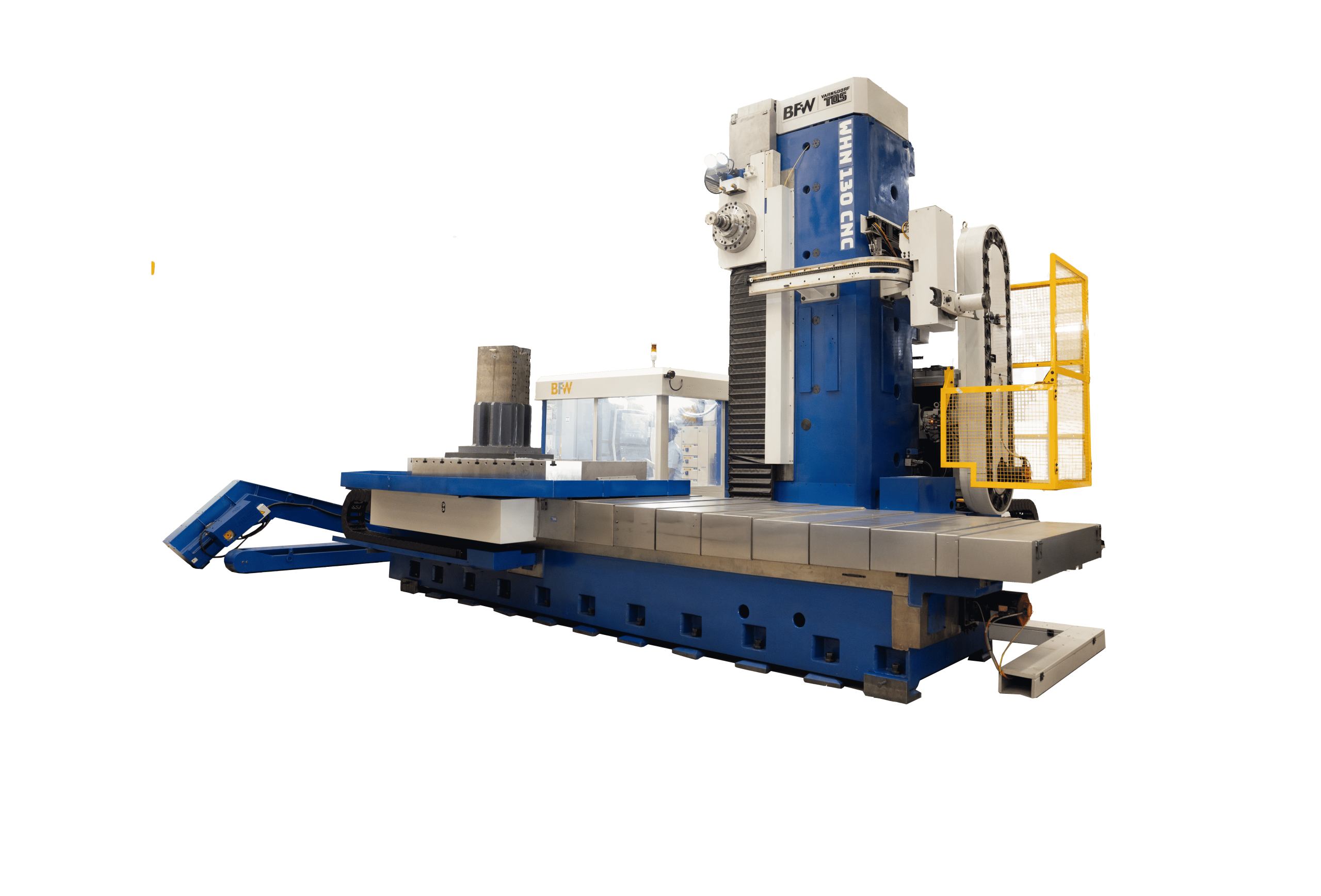

The BFW WHN 110/130 CNC Horizontal Boring and Milling Machine is designed for the precision machining of large, heavy components. Featuring a rigid T-bed structure with a movable column, it integrates a high-torque spindle and extended stroke for efficient boring, milling, drilling, and facing operations while ensuring excellent rigidity, stability, and machining accuracy.

Specifications:

● Capacity Unit: WHN 110 / WHN 130

● Machine Type: CNC Horizontal Boring and Milling Machine

● Machine Structure: Rigid T-bed design with movable column

● Spindle Diameter: 110 mm / 130 mm

● Spindle Taper: ISO 50 / BT 50 / BBT 50

● Spindle Speed Range: Up to 3000+ RPM, depending on model

● Spindle Stroke (W Axis): Up to 800 mm for deep boring operations

● Vertical Travel (Y Axis): Up to 1600-2500 mm, depending on configuration

● Column Travel (Z Axis): Up to 1250-2000 mm, depending on configuration

● Rotary Table: Integrated rotary table for multi-directional machining

● Machining Capability: Boring, milling, drilling, and facing operations
