Description

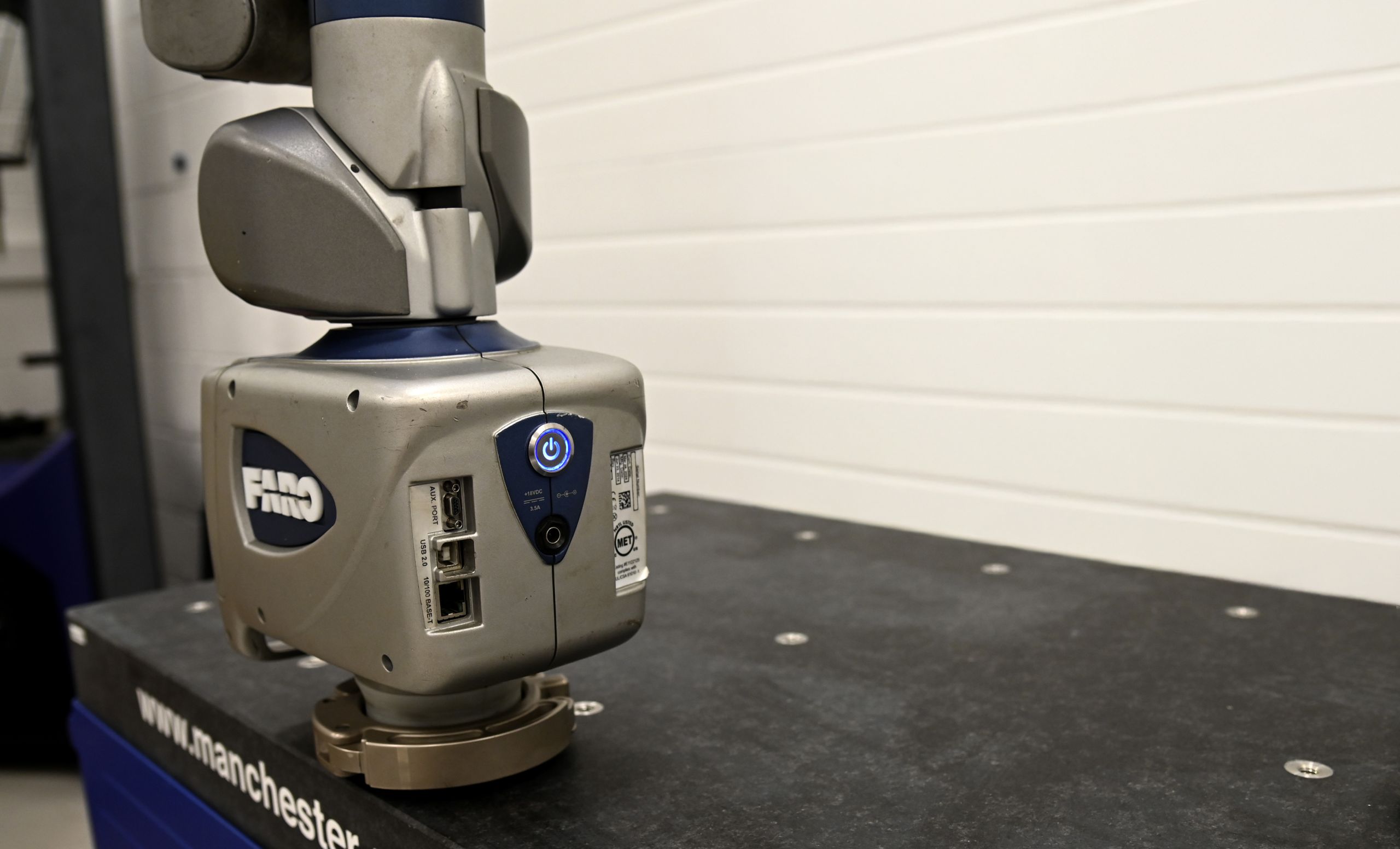

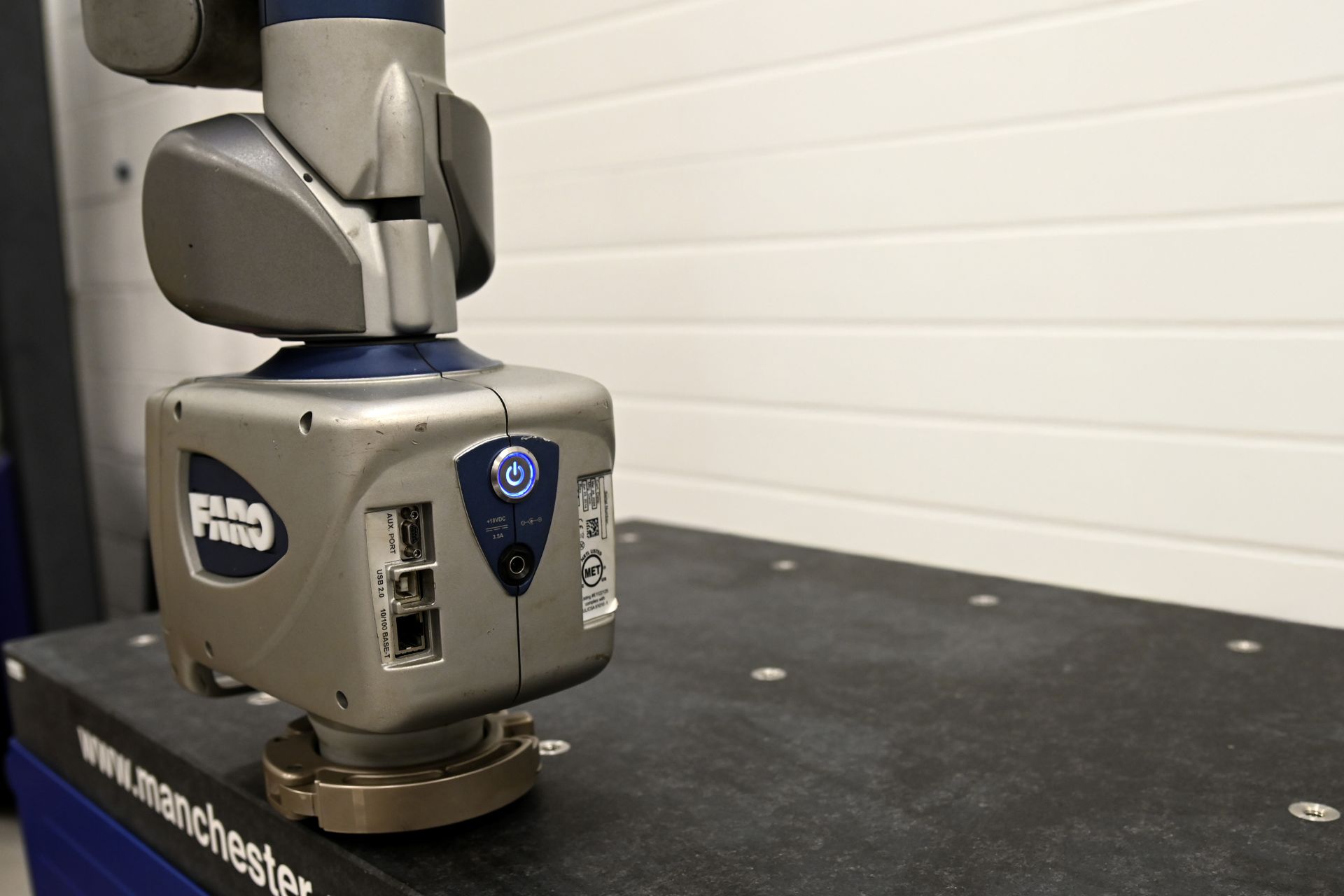

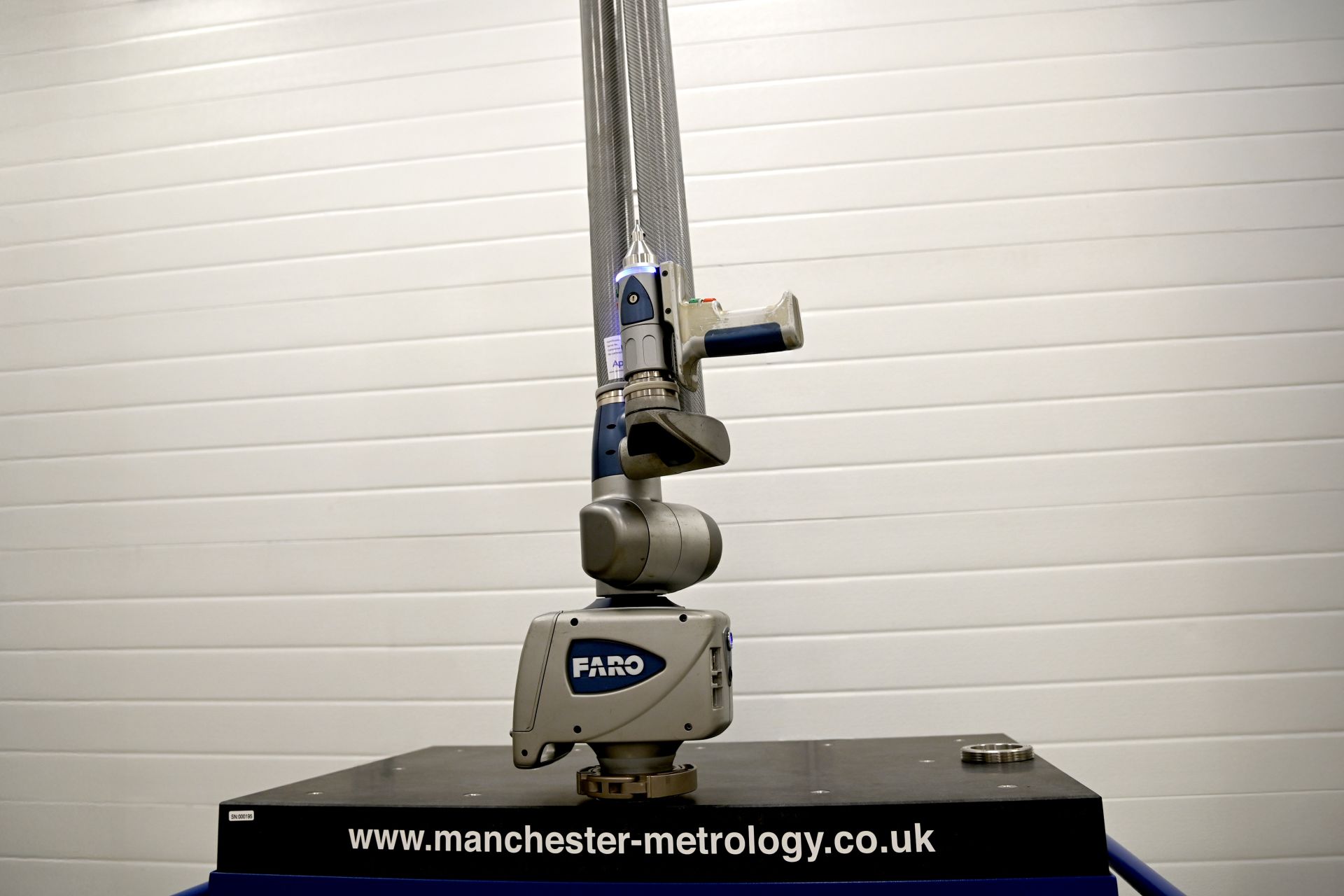

Our FARO Edge 12ft Portable Arm offers a built-in touchscreen and on-board operating system for standalone basic measurement when needed. Portable, reliable and easy to use, it’s perfect for fast verification of parts for production, quality or reverse engineering.

***************

Most Common Applications

Aerospace: Alignment, tooling & mould certification, part inspection

Automotive: Tool building & certification, alignment, part inspection

Metal fabrication: OMI, First Article Inspection, periodic part inspection

Moulding/tool & die: Mould and die inspection

***************

Key Features

Smart Sensor Technology
Warn against excessive external loads, correct for thermal variations, and detect possible setup problems.

Smart Connectivity
Through Bluetooth, WiFi, USB, and Ethernet ready options. Enables multiple device management through enhanced networking.

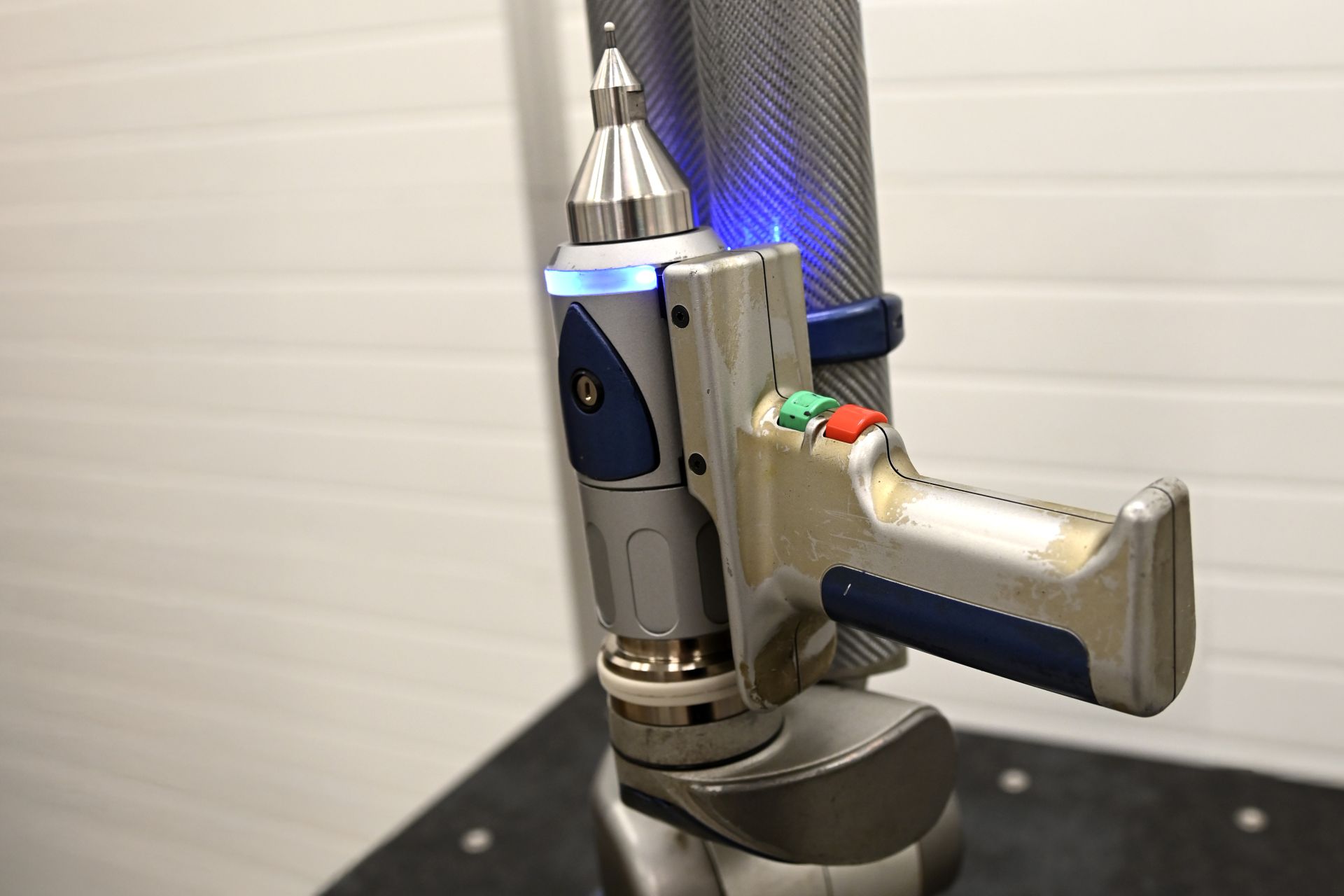

Smart Multi-Function Handle Port
Quick-change handle and expandable capability for seamless and interchangeable accessory integration.

Ergonomics
Improved weight distribution and balance, for reduced strain and ease-of-use.

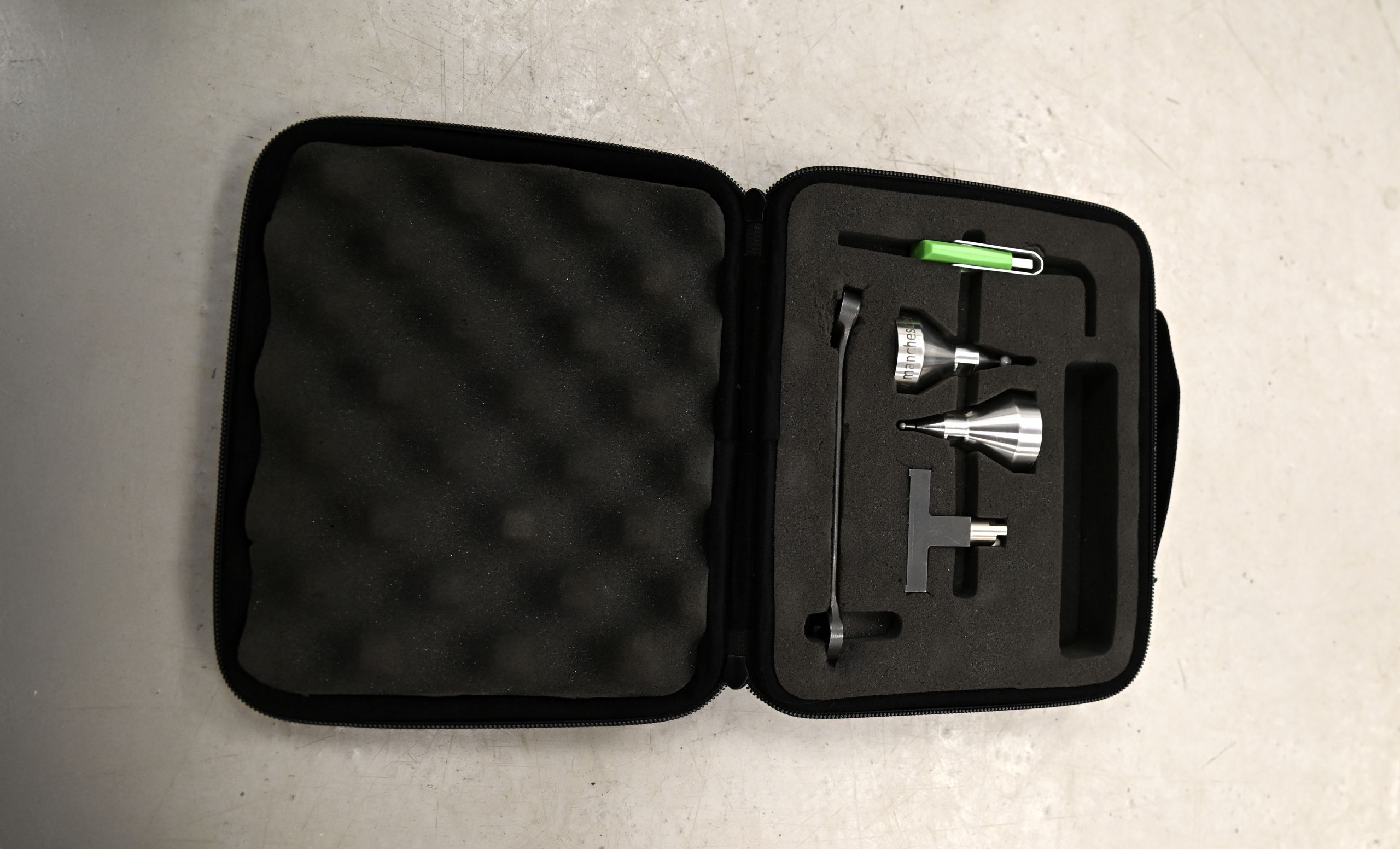

Multi-Probe Capability

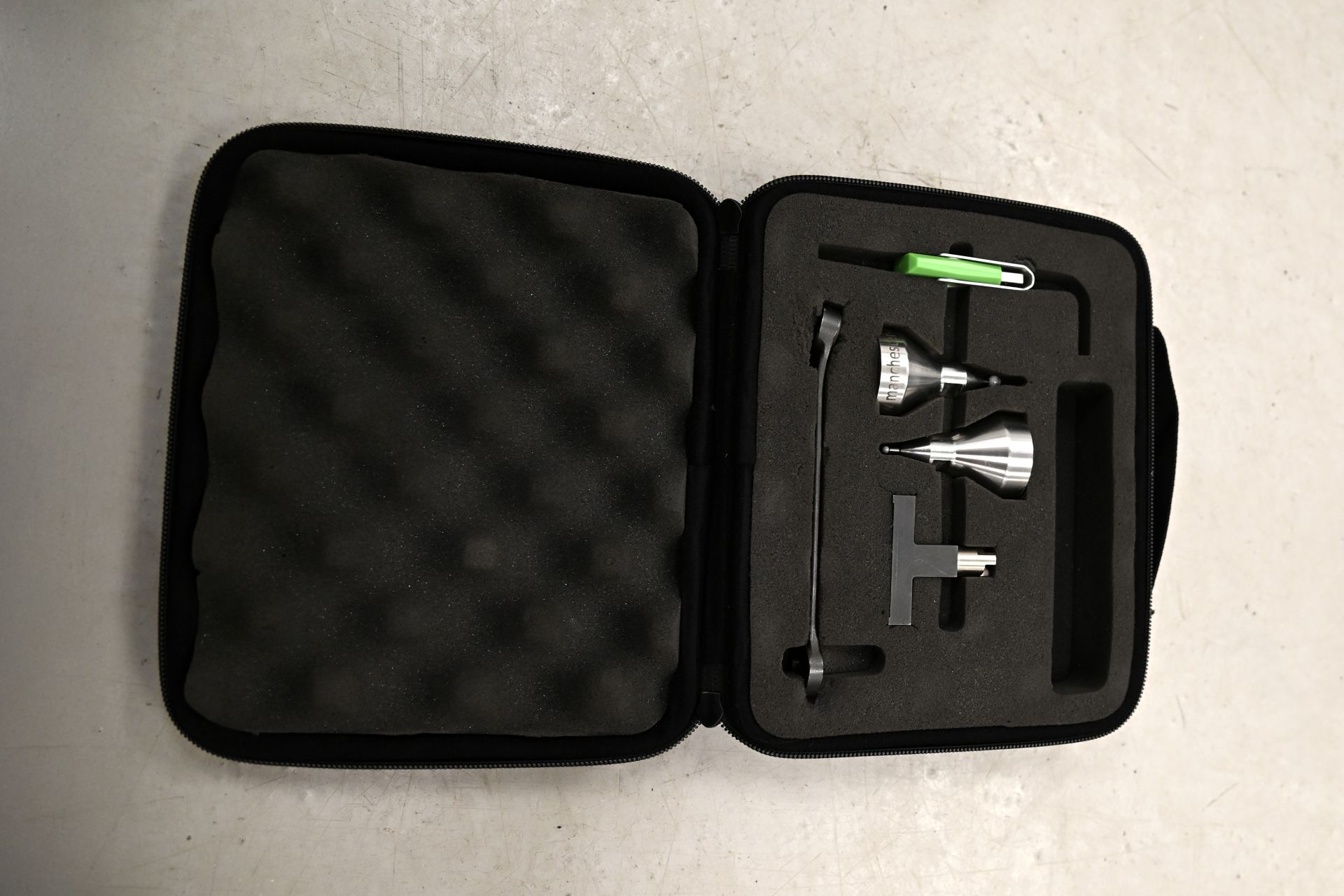

Including standard, touch, FARO iProbes, and custom probes.

Intuitive On-Board Measurement System
Built-in touchscreen computer for laptop-free basic measurements. On-board diagnostics and easy-to-setup measurement routines.

***************

Additional Benefits

– Simplified user experience

– Enhanced ergonomics, less fatigue

– Quick measurements without a computer

– Diagnose setup issues affecting performance

– Improved reliability and capability

***************

Performance Specifications

Measurement Range: 3.7m (12ft)

Repeatability*: 0.064mm (0.0025in.)

Accuracy**: ± 0.091mm (±0.0035in.)

FaroArm Weight: 11.3kg (24.9lbs.)

FaroArm test methods – (Test methods are a subset of those given in the B89.4.22 standard.)

*Single point articulation performance test (Max-Min)/2: The probe of the FaroArm is placed within a conical socket,Q and individual points are measured from multiple approach directions. Each individual point measurement is analysed as a range of deviations in X, Y, Z. This test is a method for determining articulating measurement machine repeatability.

**Volumetric maximum deviation: Determined by using traceable length artefacts, which are measured at various locations and orientations throughout the working volume of the FaroArm. This test is a method for determining articulating measurement machine accuracy.

***************

Hardware Specifications

Operating temp range: 10°C – 40°C (50°F – 104°F)

Temperature rate: 3°C/5min. (5.4°F/5min.)

Operating humidity range: 95%, noncondensing

Power supply: Universal worldwide voltage 85-245VAC 50/60Hz

***************

Certifications

Complies with the following EC Directives: 93/68/EEC CE Marking; 2004/108/EC ELECTRICAL EQUIPMENT; 1999/5/EC R&TTE Directive; 2002/95/EC – RoHS ▪ Conforms to the following standards: EN 61010-1:2001 / CSA-C22.2 No. 61010-1; EN 61326-1:2006; IEC 60825-1:2007; FDA (CDRH) 21 CFR 1040.10 / ANSI Z136.1-2007; IEEE 802.11 b/g; FCC Part 15 Subpart C / IC RSS-210 and ESTI EN 300/301 (WLAN and Bluetooth) ▪ Pat. 5402582, 5611147, 5794356, 6366831, 6606539, 6904691, 6925722, 6935036, 6973734, 6988322, 7017275, 7032321, 7043847, 7051450, 7069664, 7269910, 7735234, 7784194, 7804602, 7881896, RE42055, RE42082

***************

Delivery & UK VAT

Delivery is to be confirmed and is based on UK location. If outside the UK, you will need to arrange your own shipping.

For UK buyers there will be VAT added on the final price.

***************

Exclusions

Rolling cart featured in photos is not included.
